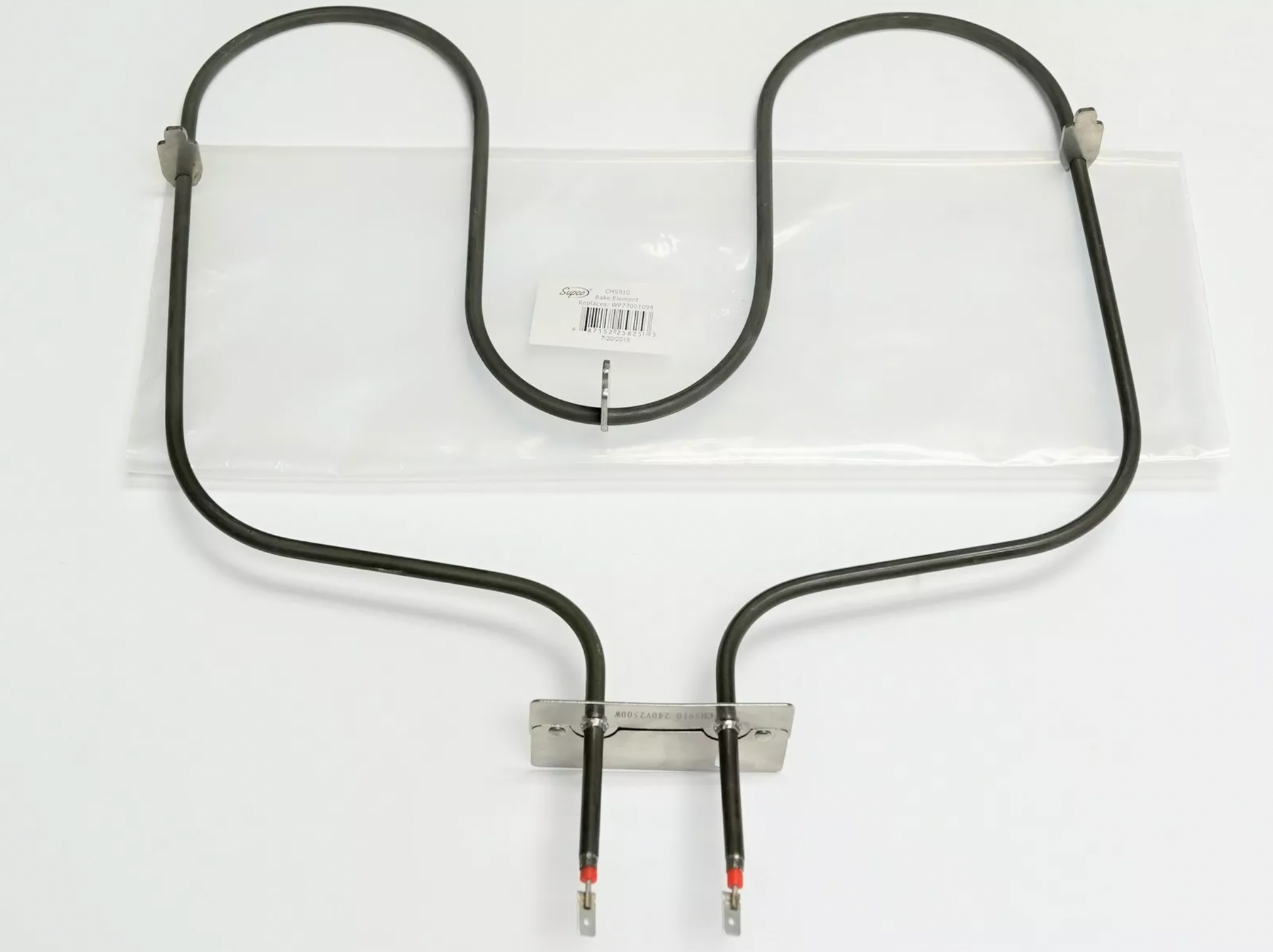

Range Bake Lower Oven Heating Element replacement For Amana ART6001W

Range Bake Lower Oven Heating Element replacement For Amana ART6001W

13-1/4" from the front to the mounting bracket

14-5/8" Wide

3" from the mounting bracket to the end of terminal

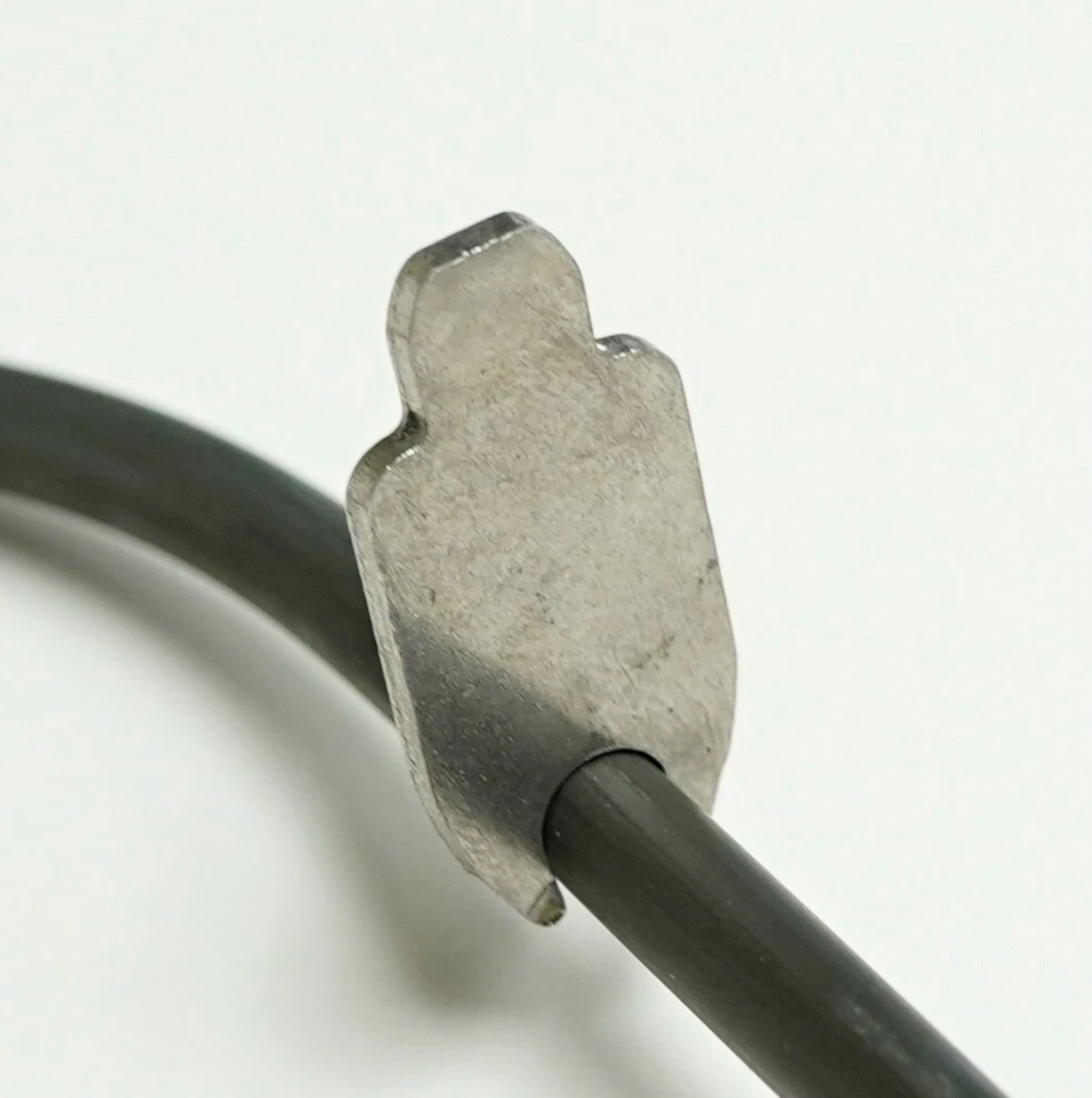

Mounting holes on bracket across element measure 1-13/16" apart, center to center

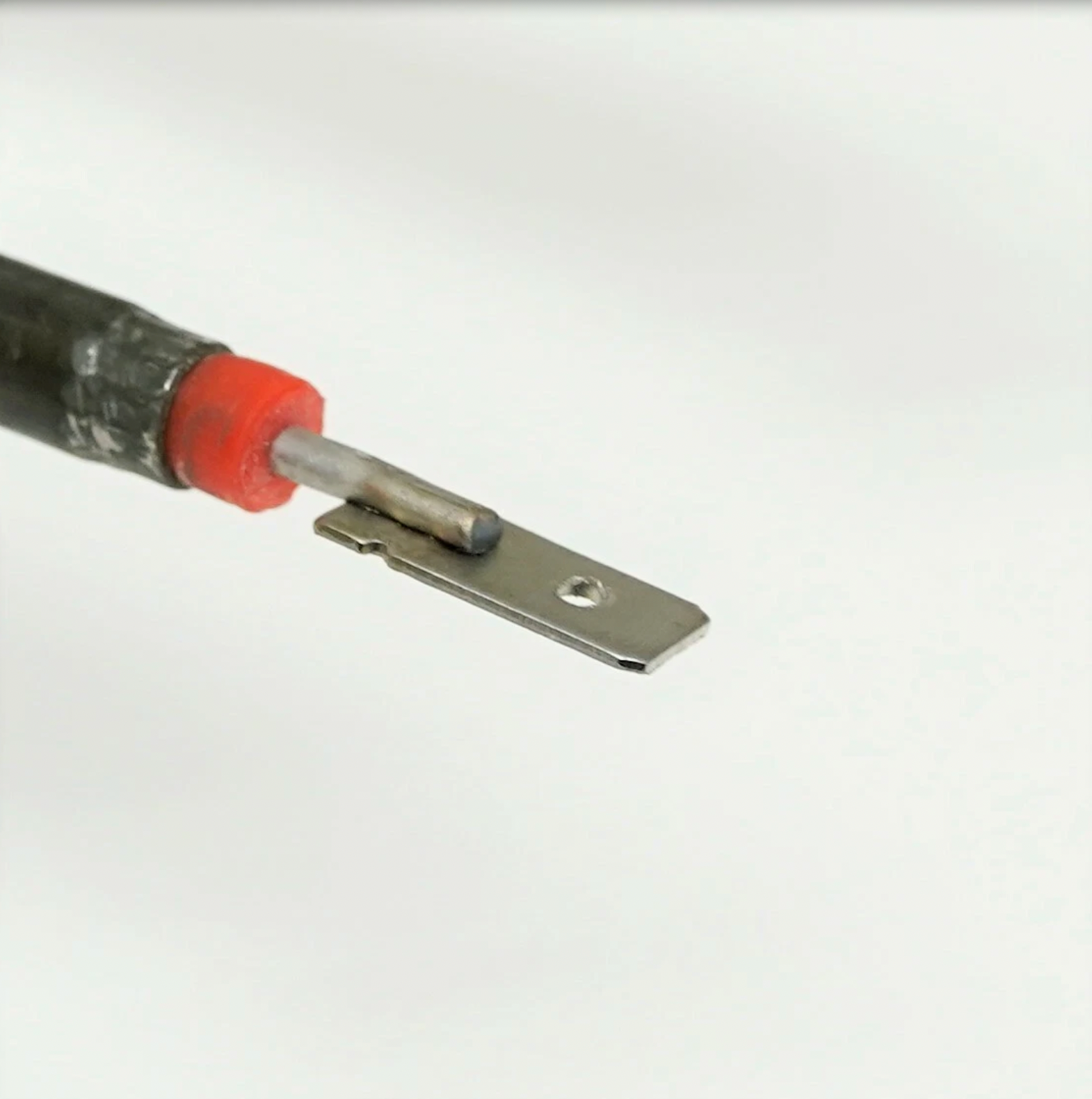

Terminals are 1/4" male spade

Rated 2600 Watts at 240 Volts
